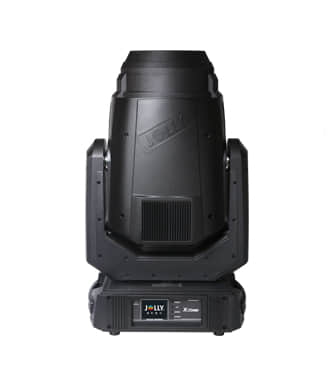

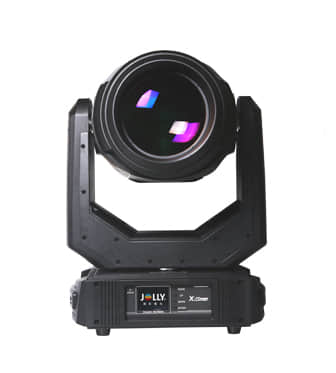

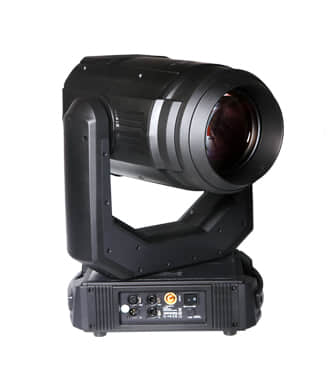

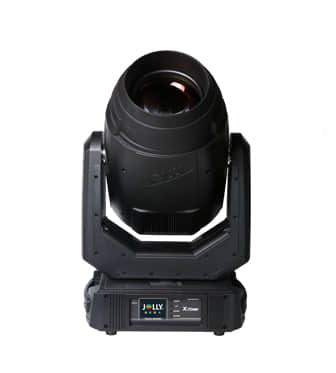

X-7 Coupe

Performance

Lamp：OSRAM SIRIUS HRI 470 W

Color temperature：7500K

Power：AC:100-240V/50-60Hz  , 650W

Pan  540° 3.8S    Tilt  270°  2.2S

Colorwheel：13 color + open

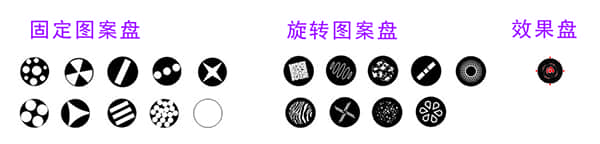

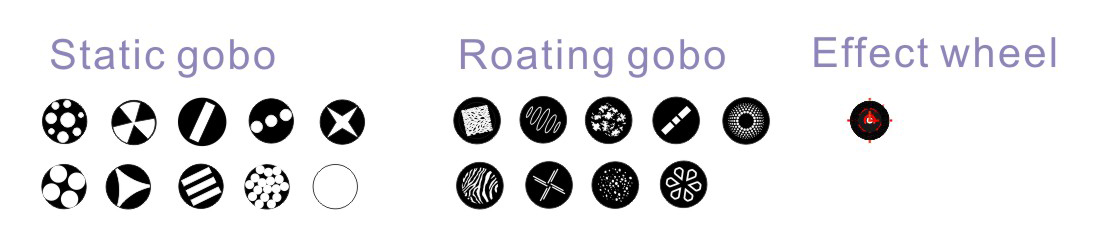

Static gobowheel：14 gobo + open

Rotating gobowheel：9 gobo + open

Animation wheel：speed adjustable

CMY： CMY effect

Prism：2  8facet,  2  6 facet,  1 32facet，1 concave lens

Frost：linear frost

Focus：auto focus

Zoom：linear zoom

Strobe：0.5-13/S

Dimmer：linear dimmer

Display：2.8 touch screen

Upgrate : firmware upgrate with DMX cable

Battery: display with battery inside

Channel：38/34 channels

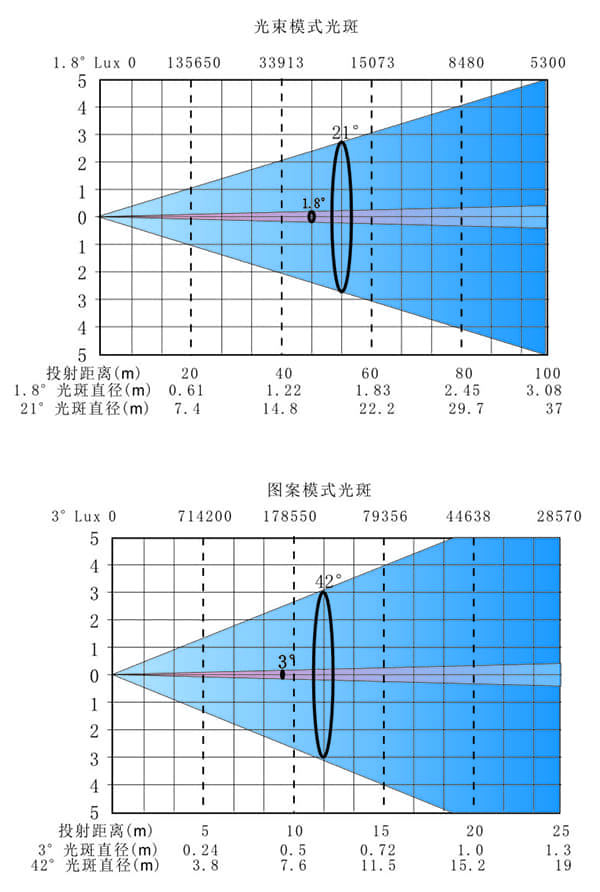

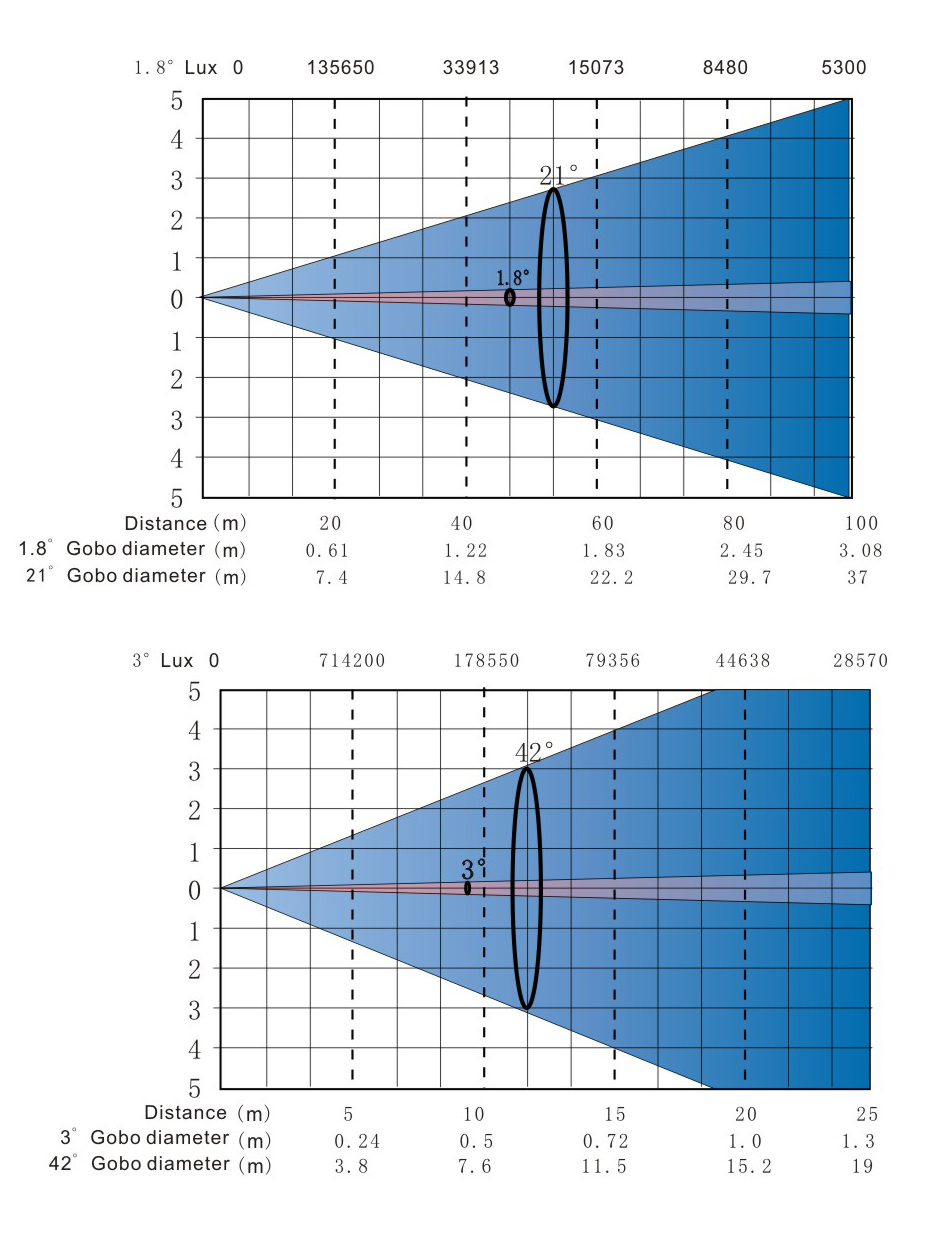

ZOOM： BEAM MODE 1.8-21° , SPOT MODE 3-42°

Gobo size：OD 15.8mm     ID 12.3mm

CRI: 80 0r 90

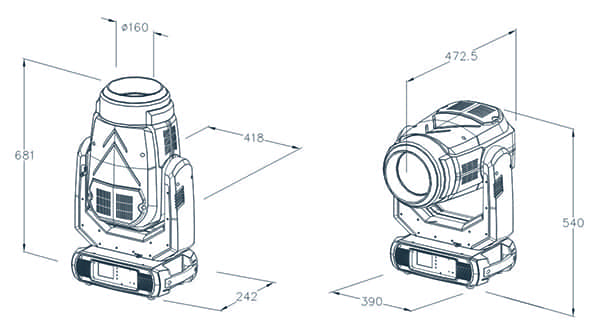

Size  L 366mm   W 458mm   H 757mm

Weight：N.W. 36kgs

IP 20

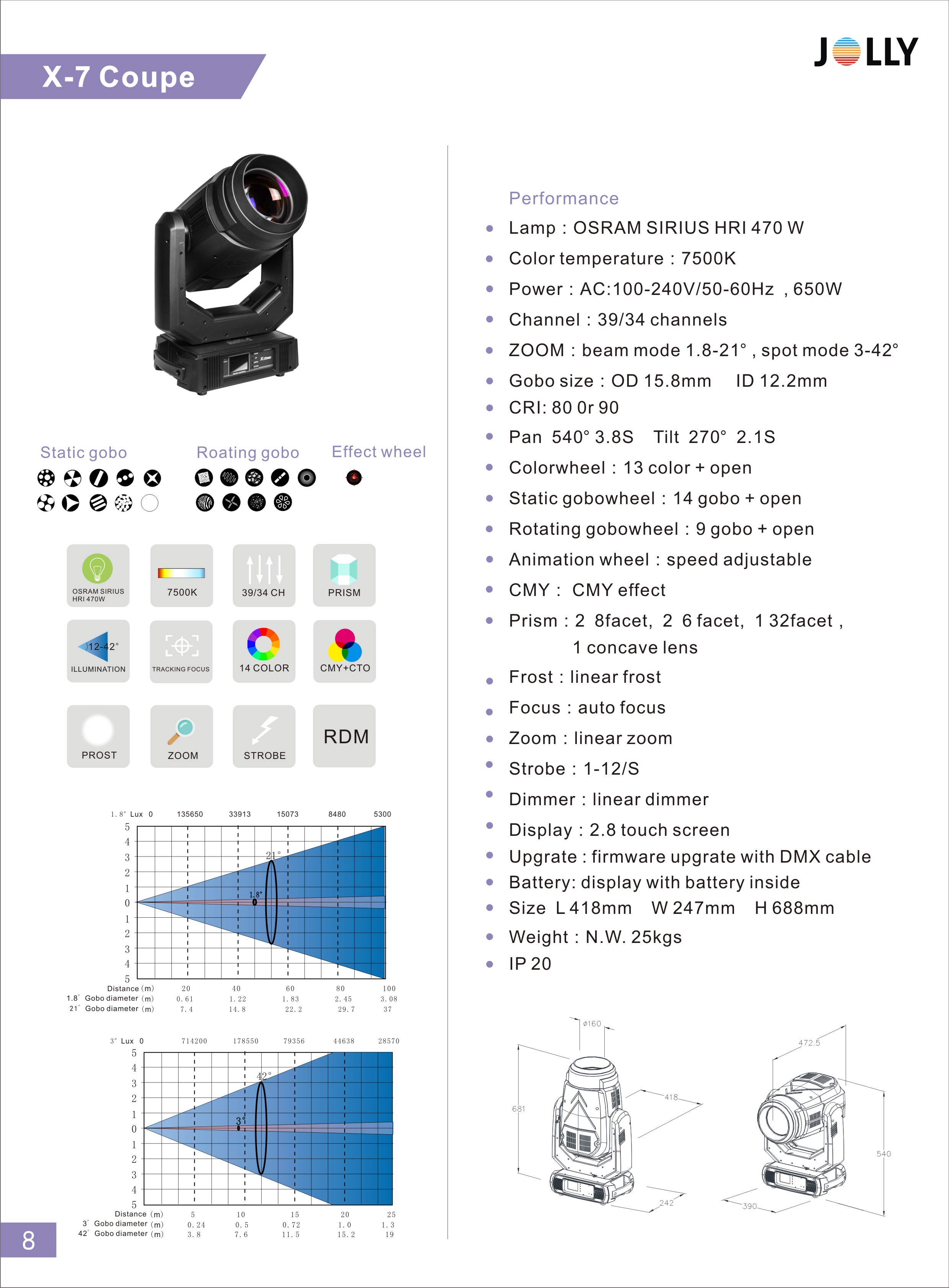

Catalogue:

X-7 COUPE.pdf

library:

MA2：

MA2(xml).zip

MA3:

MA3(gdtf).zip

AVOLITES（R20）:

AVOLITES(R20).zip

TITAN（D4）:

titan(D4).zip

Manual:

X-7 Coupe.zip

Software:

X-7 COUPE.zip
