LL-300Z

LED-based Basic

Product details

  • Functional Overview

  • Technical specifications

    Performance

    Lamp:300W  White LED

    Color temperature:8000K

    Power:AC:100-240V  50/60Hz  400W

    Channel:14 channels

    Color wheel:7 + open

    Static gobo wheel:3 + effect+ open

    Rotating gobowheel: 4+ open

    Prism:4 facet

    Focus:auto-focus

    Zoom:20°-40°

    Strobe:25/S

    Dimmer:linear dimmer

    Display:LCD

    Size:L 355mm    W 310mm   H 337.5mm

    Weight:N.W. 11kgs    G.W. 13kgs

    IP65

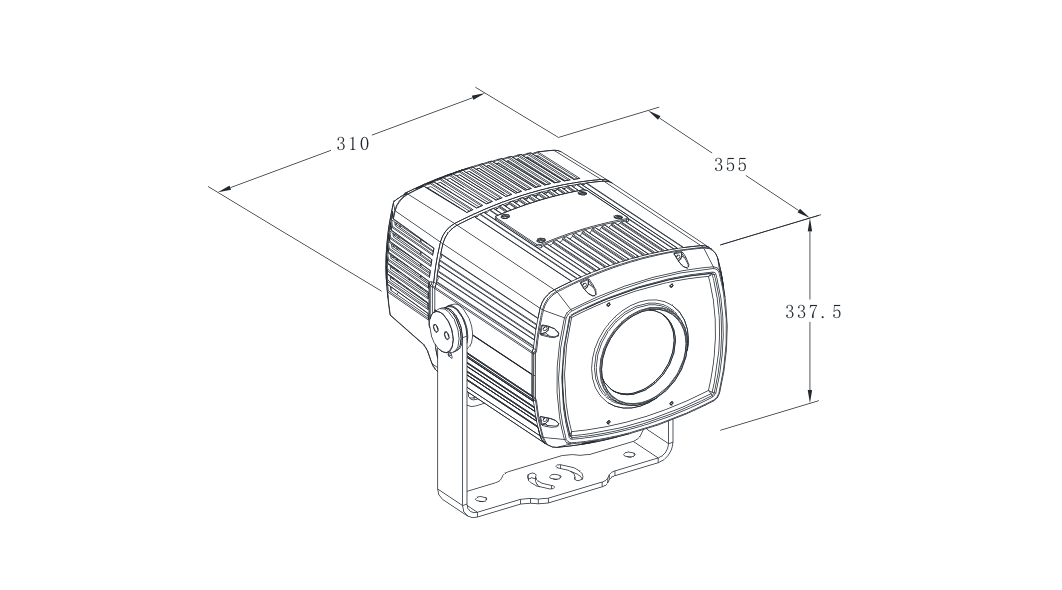

  • Dimensions

    OL-300Z WAIGUAN.jpg

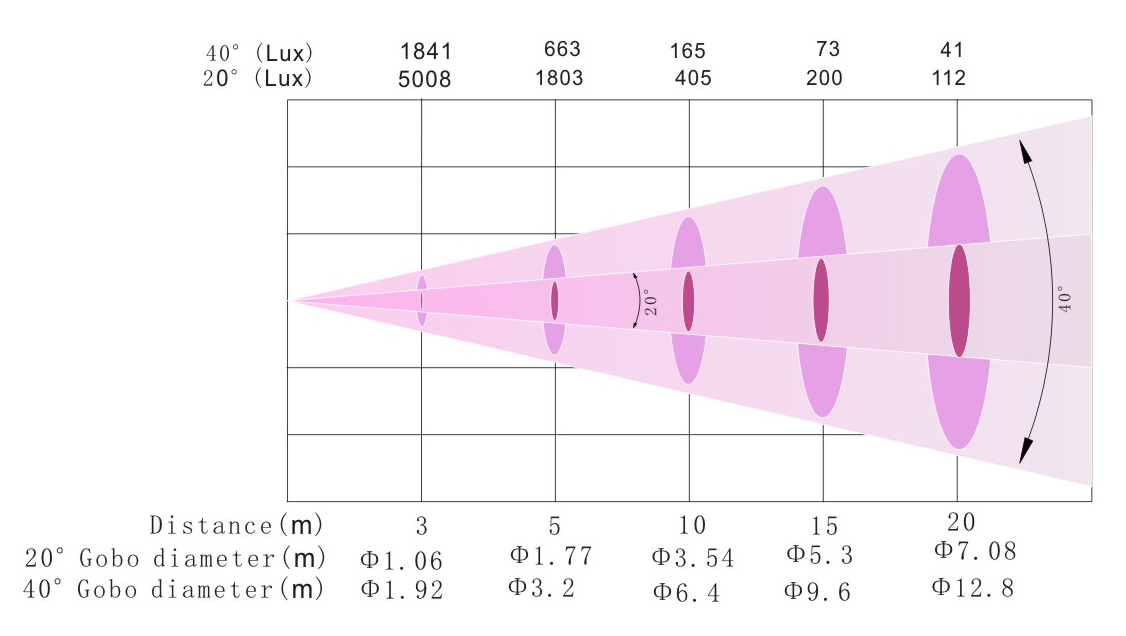

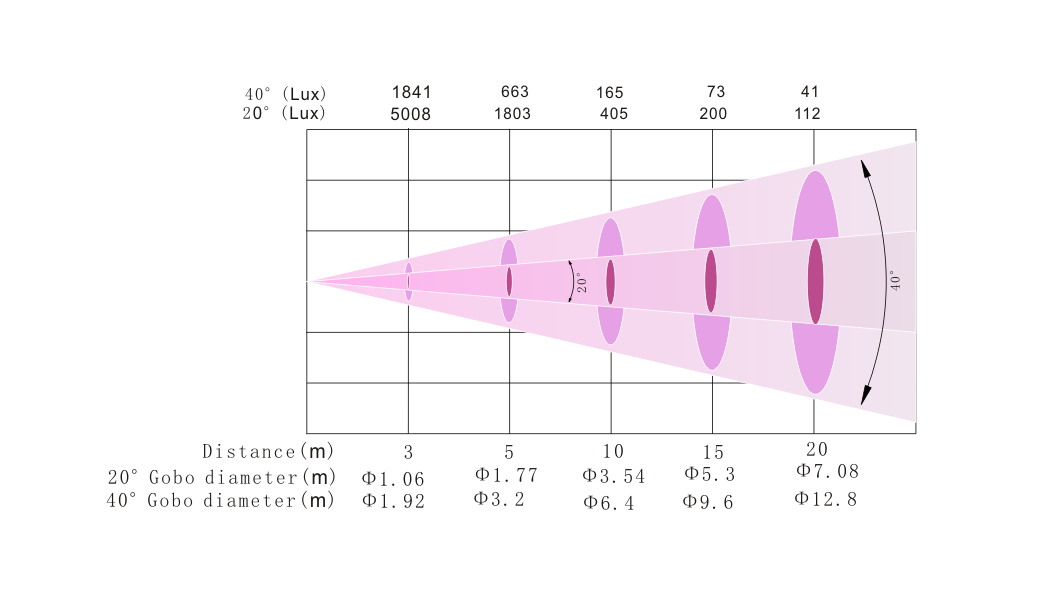

  • Illuminance diagram

    LL-300Z 英文光照表.jpg

  • Effect

  • Lighting

  • Accessories

  • Download




    800700625 LL-300 Z英文说明书 A5 (JOLLY)221102.pdf
